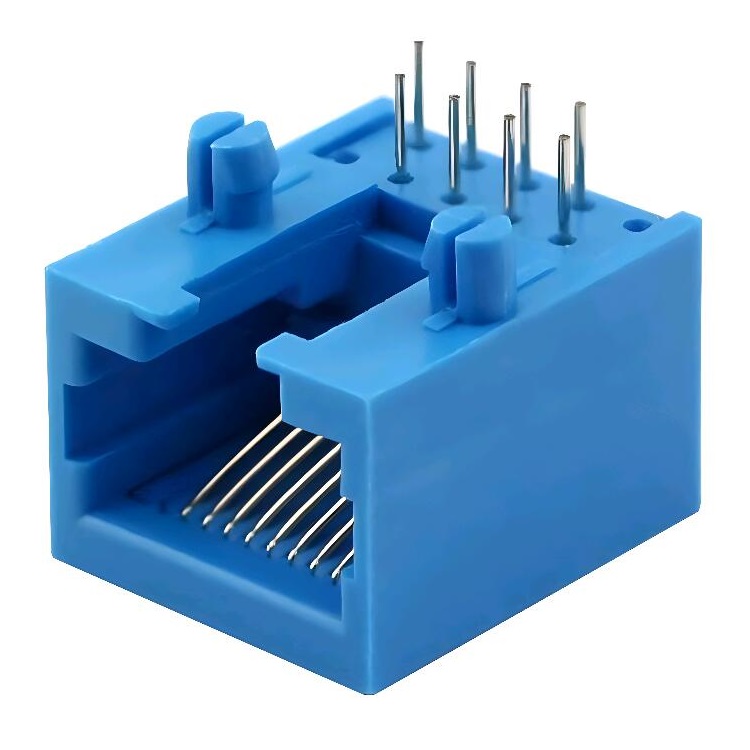

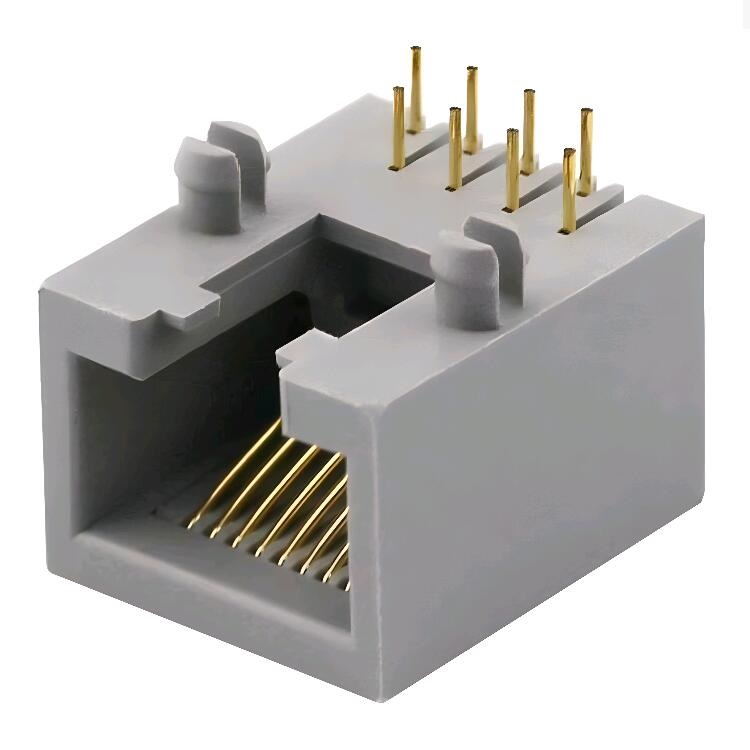

1-215877-3 Horizontal Plastic 8P8C RJ45 Modular Jack

  • Number of Ports: 1X1
  • Speed: RJ45 Without Magnetics
  • Application-Lan : NoN PoE
  • Latch: Down
  • LED: Without LED
  • Orientation : 90°Angle (Right)
  • Compatible Brand : TE/Tyco
  • Mounting Type: Through Hole
  • Shielding: Unshielded
  • Temperature: ﹣40 TO ﹢85

  • Part Number:1-215877-3
  • Product Detail

    Contact Us

    Product Tags

    Similar Part No

    615008137121 Horizontal Plastic 8P8C Modular Jack Tab Down

    QQ截图20210414094245

    Categories  Connectors, Interconnects
     Modular Connectors - Jacks
    Application-LAN  ETHERNET(NoN POE)
    Connector Type  RJ45
    Number of Positions/Contacts  8p8c
    Number of Ports  1×1
    Applications Speed  RJ45 Without Magnetics
    Mounting Type  Through Hole
    Orientation  90° Angle (Right)
    Termination  Solder
    Height Above Board  11.65 mm
    LED Color  Without LED
    Shielding  Without Shielded
    Features  Board Guide
    Tab Direction  Down
    Contact Material  Phosphor Bronze
    Packaging  Tray
    Operating Temperature  -40°C ~ 85°C
    Contact Material Plating Thickness  Gold 6.00µin/15.00µin/30.00µin/50.00µin
    Shield Material  Brass
    Housing Material  Thermoplastic
    RoHS Compliant  YES-RoHS-5 WIth Lead in Solder Exemption



    Registered jack is RJ, also known as RJ connector. It is one of all connectors. The structure and wiring of a standardized physical network interface make it an ideal RJ network interface and an interface for telecommunication connections.
    The conduction performance of the RJ connector for electrical signals or waves is an important indicator. Therefore, the electrical conductivity should be considered when selecting the electroplating process. From the perspective of electrical conductivity, silver plating has become the choice of electroplating process for header and female connectors. However, the RJ connectors in actual applications are all gold-plated.
