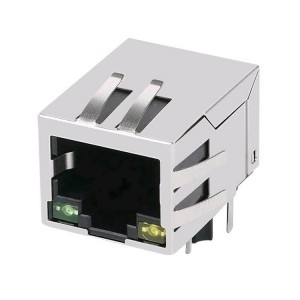

2461060000 Modular Jack 1 Port 8P8C Right Angle Shielded RJ45 Connector

  • Number of Ports: 1X1
  • Speed: 100 Base-T
  • Application-Lan : NoN PoE
  • Latch: Down
  • LED: With LED
  • Orientation : 90°Angle (Right)
  • Compatible Brand : Weidmüller
  • Mounting Type: Through Hole
  • Shielding: Shielded
  • Temperature: ﹣40 TO ﹢85

  • Part Number:2461060000


  • Product Detail

    Contact Us

    Product Tags

    Similar Part No

    AR11-3664 Modular Jack 1 Port 8P8C Right Angle Shielded RJ45 Connector

    2

    Categories  Connectors, Interconnects
     Modular Connectors - Jacks With Magnetics
    Application-LAN  ETHERNET(NoN POE)
    Connector Type  RJ45
    Number of Positions/Contacts  8p8c
    Number of Ports  1×1
    Applications Speed  100 Base-T, AutoMDIX
    Mounting Type  Through Hole
    Orientation  90° Angle (Right)
    Termination  Solder
    Height Above Board  0.537″ (13.65mm)
    LED Color  With LED
    Shielding  Shielded
    Features  Board Guide
    Tab Direction  Down
    Contact Material  Phosphor Bronze
    Packaging  Tray
    Operating Temperature  -40°C ~ 85°C
    Contact Material Plating Thickness  Gold 6.00µin/15.00µin/30.00µin/50.00µin
    Shield Material  Brass
    Housing Material  Thermoplastic
    RoHS Compliant  YES-RoHS-5 WIth Lead in Solder Exemption
