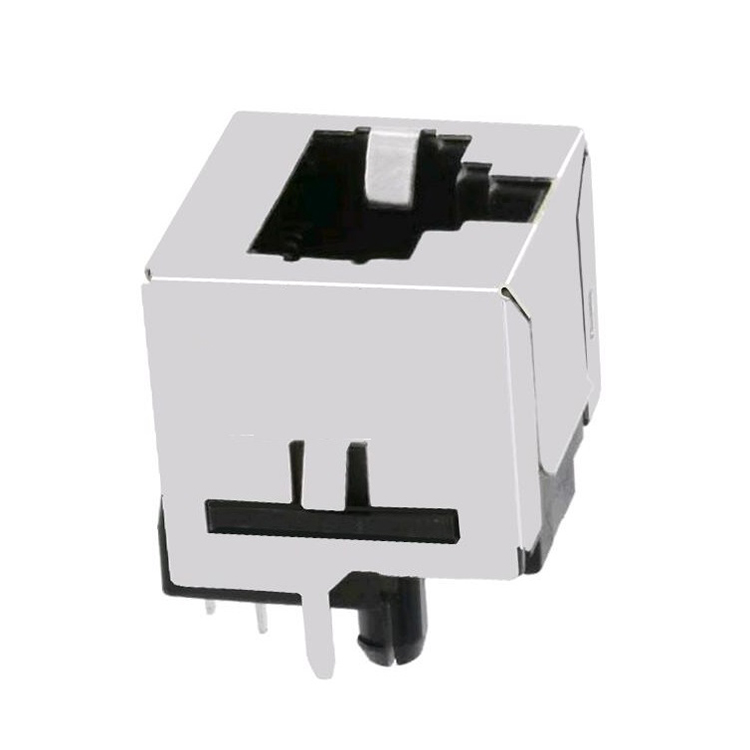

5557484-1 PCB Modular Jack Without Magnetic Vertical RJ45 Connector
5557484-1 PCB Modular Jack Without Magnetic Vertical RJ45 Connector
| Categories | Connectors, Interconnects |
| Modular Connectors - Jacks Without Magnetics | |
| Application-LAN | ETHERNET(NoN POE) |
| Connector Type | RJ45 |
| Number of Positions/Contacts | 8p8c |
| Number of Ports | 1×1 |
| Applications Speed | RJ45 Without Magnetics |
| Mounting Type | Through Hole |
| Orientation | 180° |
| Termination | Solder |
| Height Above Board | 17.00mm |
| LED Color | Without LED |
| Shielding | Shielded |
| Features | Board Guide |
| Tab Direction | UP |
| Contact Material | Phosphor Bronze |
| Packaging | Tray |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material Plating Thickness | Gold 6.00µin/15.00µin/30.00µin/50.00µin |
| Shield Material | Brass |
| Housing Material | Thermoplastic |
| RoHS Compliant | YES-RoHS-5 WIth Lead in Solder Exemption |
| 5557484-1 |
| 5557730-1 |
| 3-1734577-1 |
| 3-1734577-2 |
| 3-1734577-3 |
| 3-1734577-4 |
| 3-1734577-5 |
| 6116202-1 |
| 6116202-2 |
| 6116202-3 |
| 6116202-4 |
| 6116202-5 |
| 6116202-6 |
| 6368150-1 |
| 6368150-2 |
| 6368150-3 |
| 6368150-4 |
| 6368150-5 |
