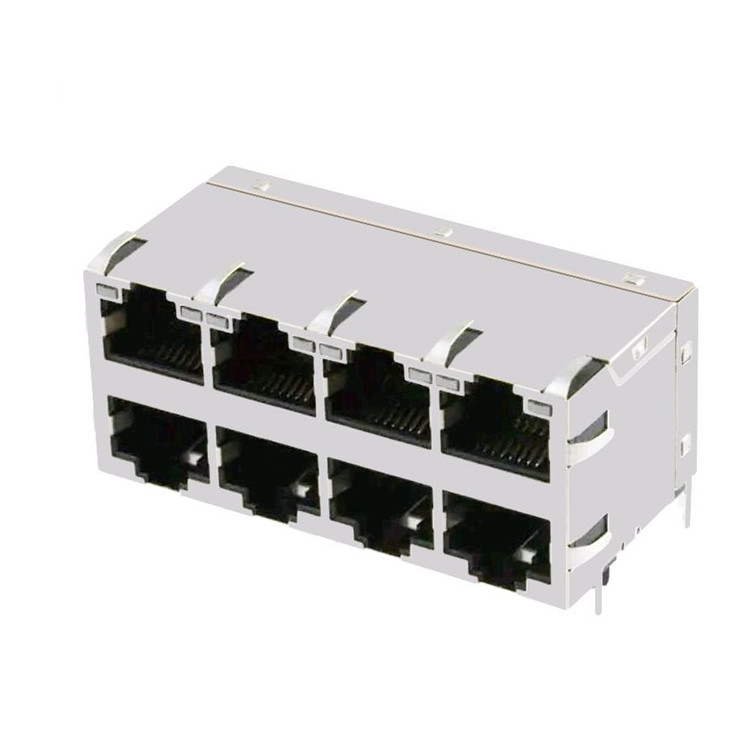

J0B-2005NL RJ45 2X4 Multi Port 2.5G Base-T Magnetics Module Connector

  • Number of Ports: 2X4
  • Speed: 2.5G
  • Application-Lan : NoN PoE
  • Latch: UP & Down
  • LED: With LED
  • Orientation : 90°Angle (Right)
  • Compatible Brand : Pulse
  • Mounting Type: Through Hole
  • Shielding: Shielded, EMI Finger
  • Temperature: 0 TO ﹢70
  • Product Length (mm): 28.40
  • Product Height (mm): 25.79
  • Product Width (mm): 59.07

  • Part Number:J0B-2005NL



  • Product Detail

    Contact Us

    Product Tags

    Similar Part No

    J0B-2005NLRJ45 2X4 Multi Port 2.5G Base-T Magnetics Module Connector

    J0B-2015NL 2x6

    Categories  Connectors, Interconnects
     Modular Connectors - Jacks
    Application-LAN  ETHERNET(NoN POE)
    Connector Type  RJ45
    Number of Positions/Contacts  8p10c
    Number of Ports  2×4
    Applications Speed  2.5G Base-T
    Mounting Type  Through Hole
    Orientation  90° Angle (Right)
    Termination  Solder
    Height Above Board  25.78 mm
    LED Color  With LED
    Shielding  Shielded, EMI Finger
    Features  Board Guide
    Tab Direction  UP & Down
    Contact Material  Phosphor Bronze
    Packaging  Tray
    Operating Temperature  -40°C ~ 85°C
    Contact Material Plating Thickness  Gold 6.00µin/15.00µin/30.00µin/50.00µin
    Shield Material  Brass
    Housing Material  Thermoplastic
    RoHS Compliant  YES-RoHS-5 WIth Lead in Solder Exemption
